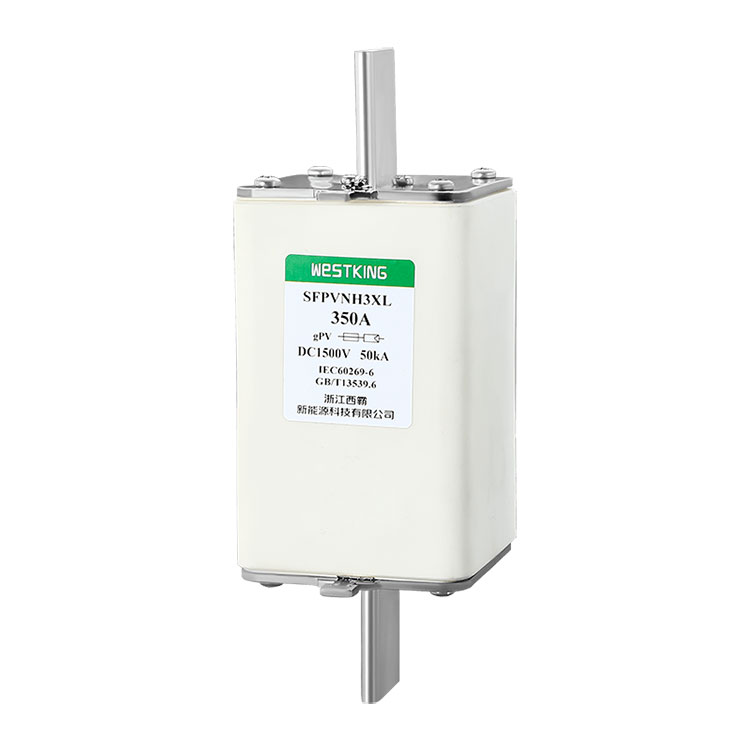

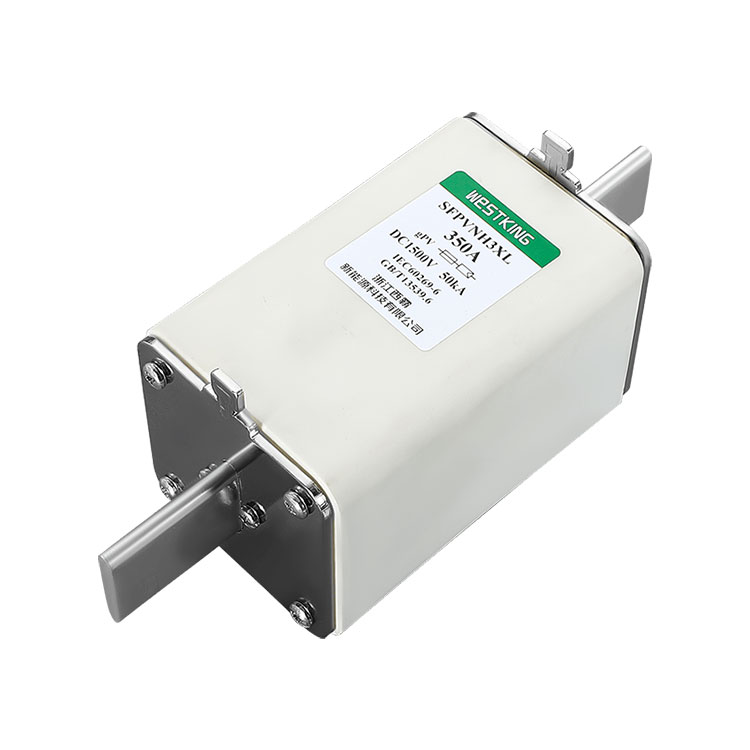

NH3XL GPV 1500VDC Fuse Link
Intra systemata photovoltaica potentia generationis, fuses WESTKINGmunere funguntur in custodiendis circuitibus et instrumentis contra damnum potentiale oriundum ex eventibus supercurrentibus et brevibus circuitionibus. Hae fuses applicationes late inveniunt per varias segmenta imaginum photovoltaicarum, inter gyros chordarum cellularum, invertentes circulos input/outputos, gyros incurrentes altilium, et gyros inversos inversos connexos.
Mitte Inquisitionem
depictio producti
In systemata photovoltaica potentia generativa, fuses WESTKINGmaxime adhibitae sunt ad tuendos ambitus et apparatum ab damno dato excursus supercurrentes et breves circuitus. Hi fuses late utuntur in gyris nervorum cellularum photovoltaicarum, invertentium input/output circuitus, incurrentes pilae circuitus, et gyros inversos circulos, etc., ad emendandi rationem firmitatis et stabilitatis. FUSCUS WESTKING materiarum qualitates efficiuntur et artificio exquisito artificio conficiuntur, cinematographicae activitates, faciles institutiones, et pactorum consiliorum, quae diversarum missionum necessitatibus occurrere possunt.
Technical data
| • Ratum voltage: | 1500Vdc |
| • Rated excursus: | 350A...630A |
| • Utendo genus: | gPV |
| • fractionis Rated facultatem: | 50kA |
| • Minimum interrumpere rating: | 1.35·In |
| • Non cumulati current: | 1.13·In |
| • at caliditas: | -40°C ... 90°C |
| •Operating Temperature : | -40°C ... 85°C |
• Cum temperatus ambiens 25°C excedit, quaeso ad mensam Westkingi solaris fuse temperatura correctionis.
Signa
IEC/EN 60269-1 Fuse links – general requirements
IEC/EN 60269-6 Fuse nexus cum systematibus photovoltaicis solaris
UL248-19
RoHS Compliant
Key features / COMMODUM
Summus intentione resistens alumina ceramic
Potest interpellare humilis culpa flumina
Humilis caliditas ortum
Subtilitas impressit fuse elementum
Humilis potentia consummatio
APPLICATIONS
Compatibile cum inverters et altilium crimen moderatoris, haec machina tutelam modulorum in linea PV praebet et ad applicationes cistae compositionis apta est.
Apta usui in omnibus systematibus photovoltaicis, praesidium praebet ad chordae/parationem systematis PV.
Testimonia
• is09001 iatf16949
Origin
China
CARACTERES
| Ratum Current | I2t(A2s) | Power lossw） 1.0 In | Net pondus | |
| Exustio | defensionem | |||
| 350A | 44000 | 136000 | 80 | 1600g |
| 400A | 56000 | 180000 | 88 | |
| 450A | 60000 | 260000 | 95 | |
| 500A | 70000 | 290000 | 106 | |
| 550A | 80500 | 320000 | 112 | |
| 630A | 89000 | 370000 | 126 | |
t-I characteres
Dimensiones (mm)
| A | B | C | D | E | F | G | H |
| 119 | 114 | 125 | 202 | 32 | 6 | 57 | 74 |
Compatible FUSE bases
temperatus disciplinam coefficiens chart
Descriptio:
1. Fuse plerumque intra temperaturas -5°C ad 40°C fines operatur, nulla addita correctione requiritur.
2. Condiciones usus licitae sunt -40°C ad 85°C.
3. Intra condiciones licitae consuetudinis, ad hanc tabulam refer.
