750VDC HSFJ750 EXILIM Fuse

WESTKING'S HSFJ750 series DC fuses750VDC HSFJ750 EXILIM Fusesunt fulmen cylindracei fuses celeres-agentes, aptae ad machinas semiconductores ut inverters, rectificatores et converters, pugnae et machinas motorias, et industries ut transitus ac stationes ferriviarias. Productorum pluma celeriter actionis responsio, humilis temperatus oritur et potentia consummatio, et bonum anti-vibrationis effectus, certa brevi circuitione praesidium variarum potentiarum systemata praebens.

Mitte Inquisitionem

depictio producti

WESTKING'S HSFJ750 Series Septentrionalis Americanorum stylus obseratus tags alta celeritate fuses ad tutelam rerum dispositae sunt;

Dc communi bus: Prospicere salutem ac fidem directi bus systematis.

DC potentiam convertentium impellit / rectificatores: has machinas muniens ab onere et brevibus circuitionibus.

Imprimis aestimavit voltage redacta: Praeveniens damnum ad has machinis ob overvoltage vel overcurrent.

Alta intentione tractus inverters: Tutus inverters istos a voltage surgentibus et aliis electricis periculis.

Haec fuses750VDC HSFJ750 EXILIM Fusecertum praesidium praebent pro variis electricis machinis et systematibus, actio celeritatis featurae responsionis, oriendi temperatura humilis, et perficiendi odii vibrationis bonae. Specimen industriarum sicut transitum railium et stationes incurrentes, WESTKING'S HSFJ750 Series fusae occurrent exigentiis systematum electrica modernorum et ad salutem operantium et apparatum tutandum.

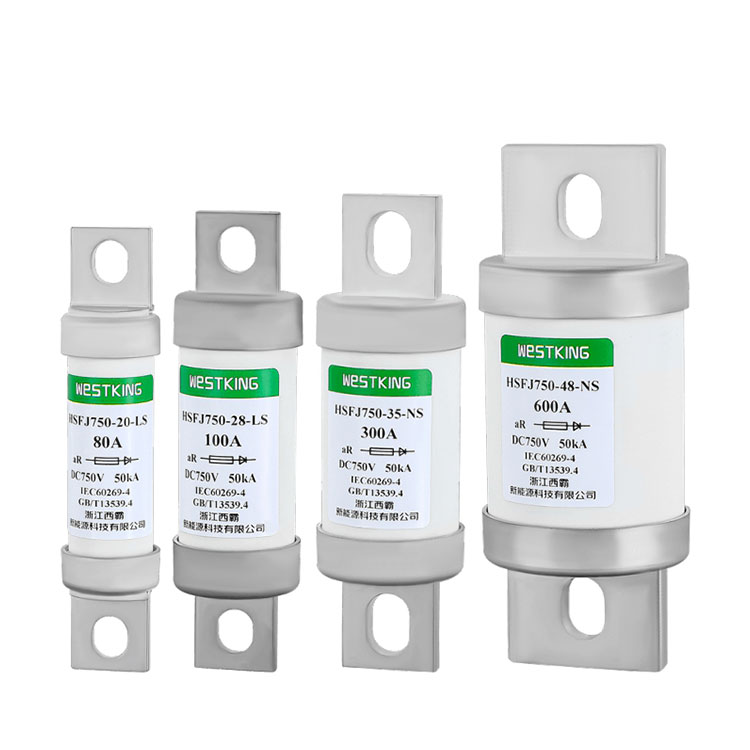

750VDC HSFJ750 EXILIM FuseTechnical data

Type	Rated voltage	Ratum currents
HSFJ750-20-LS-(Amp)	750VDC/1000Vac	50A, 60A, 70A, 80A, 100A, 125A, 150A
HSFJ750-28-LS-(Amp)	750VDC/1000Vac	100A,125A,150A,175A,200A,250A
HSFJ750-35-NS-(Amp)	750VDC/1000Vac	200A,250A,300A,350A,400A
HSFJ750-48-NS-(Amp)	750VDC/1000Vac	300A, 350A, 400A, 450A, 500A, 550A, 600A

Utendo genus: aR

Rated fractionis facultatem: 50kA

Signa

IEC/EN 60269-4

RoHS Compliant

750VDC HSFJ750 EXILIM FuseKey features / COMMODUM

Celeritas Power Cutoffs: princeps celeritas fuses offerunt celeritatis currentis terminationem, casuum damna obscuratis.

Reliability: Connexum consilium boosts stabilitatem et constantiam clausurae, quae normalem operationem in asperis ambitibus procurans.

Securus instruitur: deminutus designatio fusorum connexorum fulminis institutionem et sustentationem directam facit.

Lata applicabilitas: magnae celeritatis fuses aptae sunt variis instrumentis potentiae, inclusis DC communibus negotiis, DC potentiam convertentium/rectificantium, reductorum inprimis intentionis aestimatarum, et inverters tractus summae intentionis.

Safety: Summus celeritas fuses armamenta et personas in culpis tuentur.

Environmental Protection: Environment-amica materies in fabricandis, redigendis impingit environmental.

Energy Excepto: Altus-celeritate fuses plumam cutoff potentia altam celeritatem, ad industriam conservationem conferens.

750VDC HSFJ750 EXILIM FuseAPPLICATIONS

Series HSFJ750 Westkingi North-americana styli celsitudines fuses altae connexae principaliter designatae sunt ad tutelam DC communium negotiorum, DC potentiam convertentium/rectiferiorum, reductorum inprimorum intentionum reductorum, et inverters summus intentionis tractus.

Hae fuses partes vitalis in systematis electricis agunt, cum potentiam copiam rerum onerare vel brevibus circuitibus in casibus decurrentibus celeriter abscindere possunt.

Haec pluma salutem instrumentorum efficit et detrimentum impedit, ut necessariam variarum systematum vim efficiat.

Testimonia

• is09001 iatf16949

Origin

China

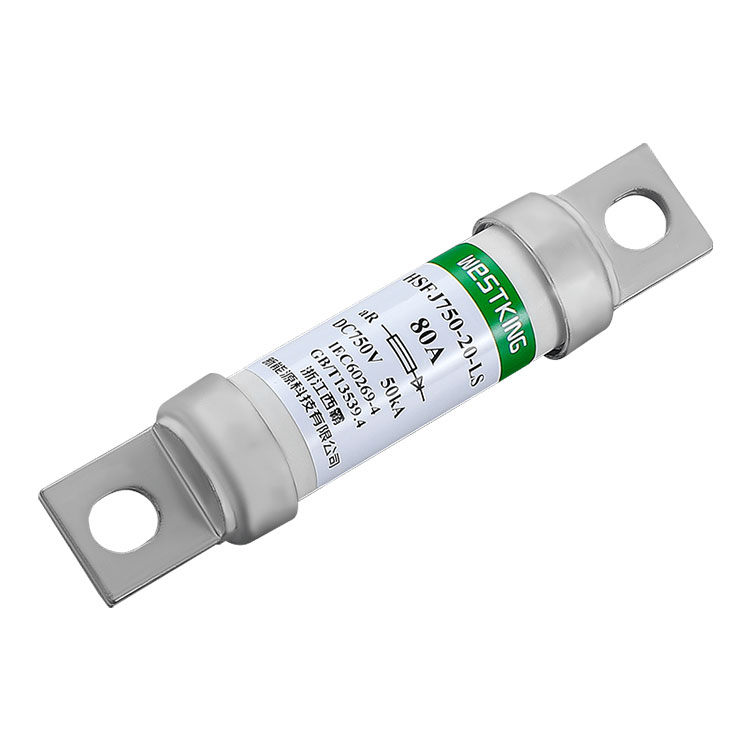

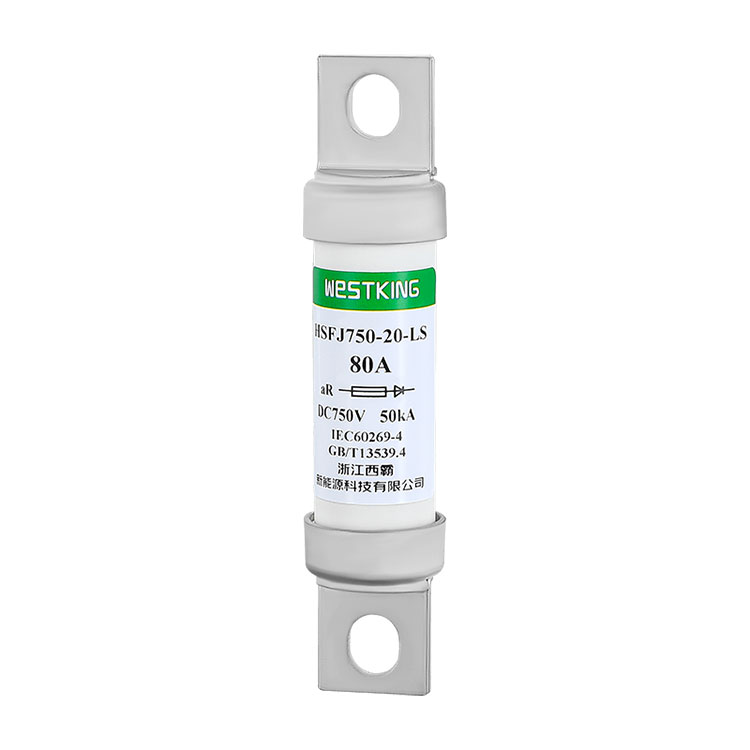

750VDC HIGH SPEED FUSE-HSFJ750-20-LS

Type			Virtus damnum 1.0 In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0 In（w）	Adscendens telum / torque
HSFJ750-20-LS-50A	165	760	12.0	Install telum M8 Commendatur adscendens torques 12.0 N▪m
HSFJ750-20-LS-60A	280	1050	14.0
HSFJ750-20-LS-70A	400	1500	17.0
HSFJ750-20-LS-80A	550	2300	19.5
HSFJ750-20-LS-100A	960	3870	23.0
HSFJ750-20-LS-125A	1640	5800	26.5
HSFJ750-20-LS-150A	2450	8460	31.0

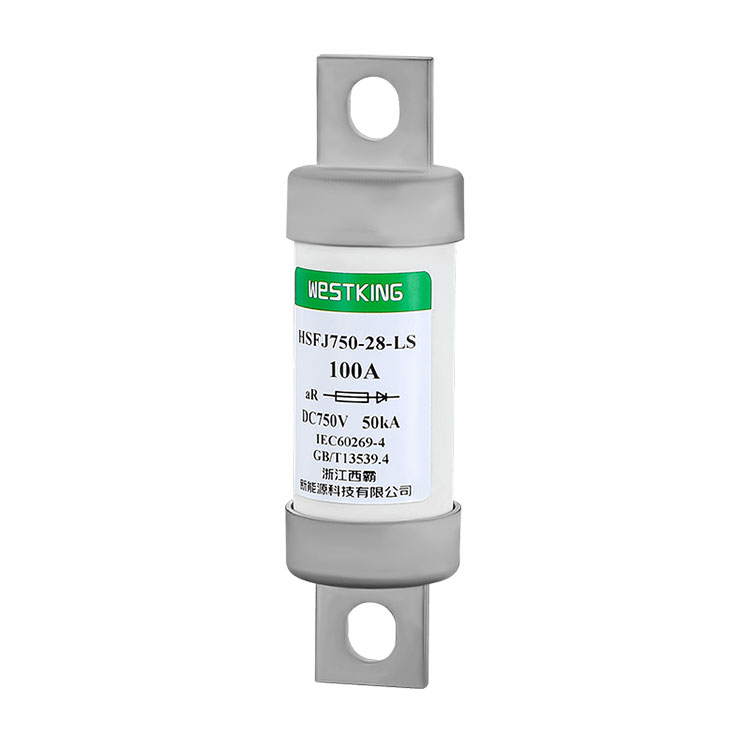

750VDC HIGH SPEED FUSE-HSFJ750-28-LS

Type	I2t(A2s)		Virtus damnum 1.0 In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0 In（w）	Adscendens telum / torque
HSFJ750-28-LS-100A	700	3500	21.0	Install telum M8 Commendatur adscendens torques 12.0 N▪m
HSFJ750-28-LS-125A	1350	5200	26.5
HSFJ750-28-LS-150A	1900	7500	33.0
HSFJ750-28-LS-175A	2800	9000	38.0
HSFJ750-28-LS-200A	4550	15100	42.5
HSFJ750-28-LS-250A	6900	34500	52.0

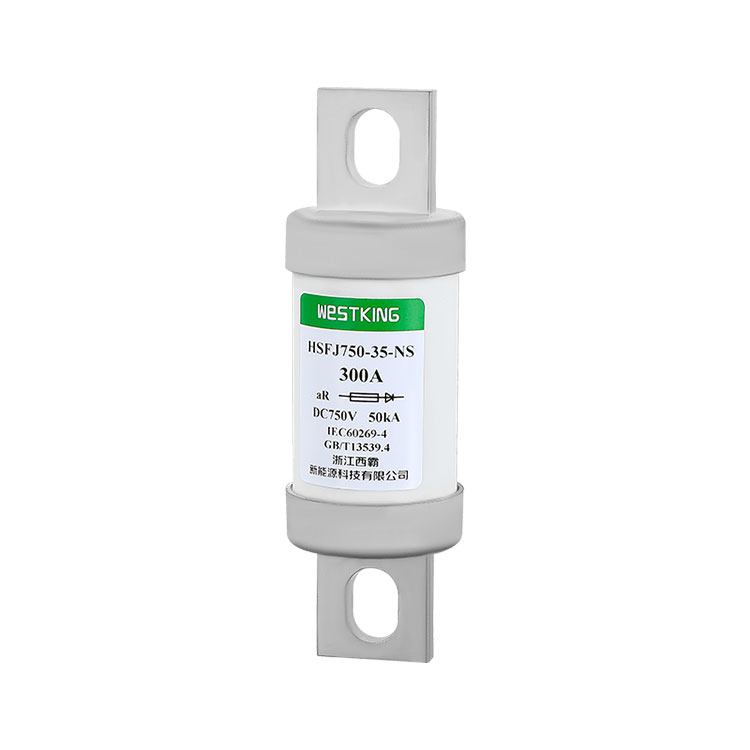

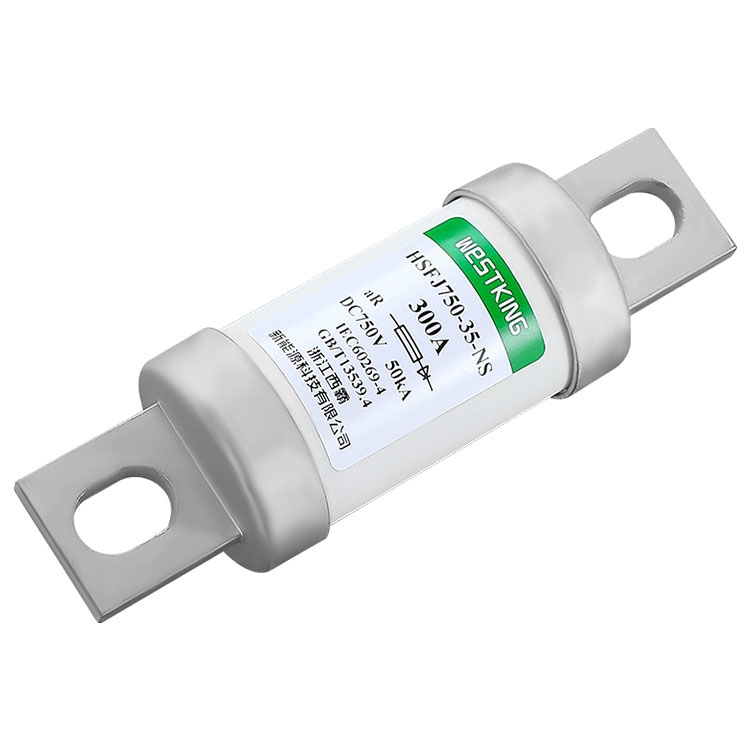

750VDC HIGH SPEED FUSE-HSFJ750-35-NS

Type	I2t(A2s)		Virtus damnum 1.0In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0In（w）	Adscendens telum / torque
HSFJ750-35-NS-200A	7200	18600	40.0	M10 install telum " Commendatur adscendens torques 20.0 N▪m
HSFJ750-35-NS-250A	10300	38500	45.5
HSFJ750-35-NS-300A	14500	56700	50.0
HSFJ750-35-NS-350A	19000	75800	57.5
HSFJ750-35-NS-400A	26500	99000	70.0

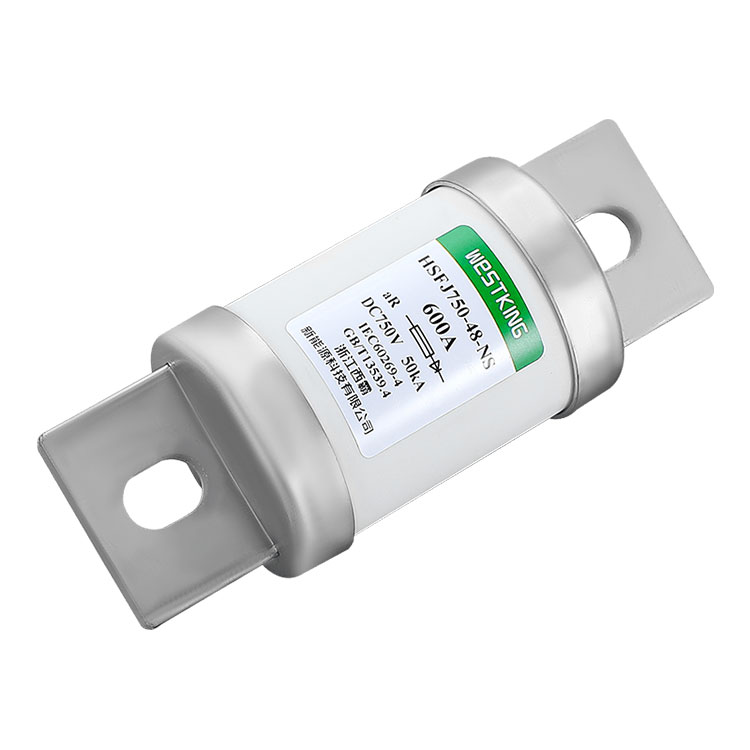

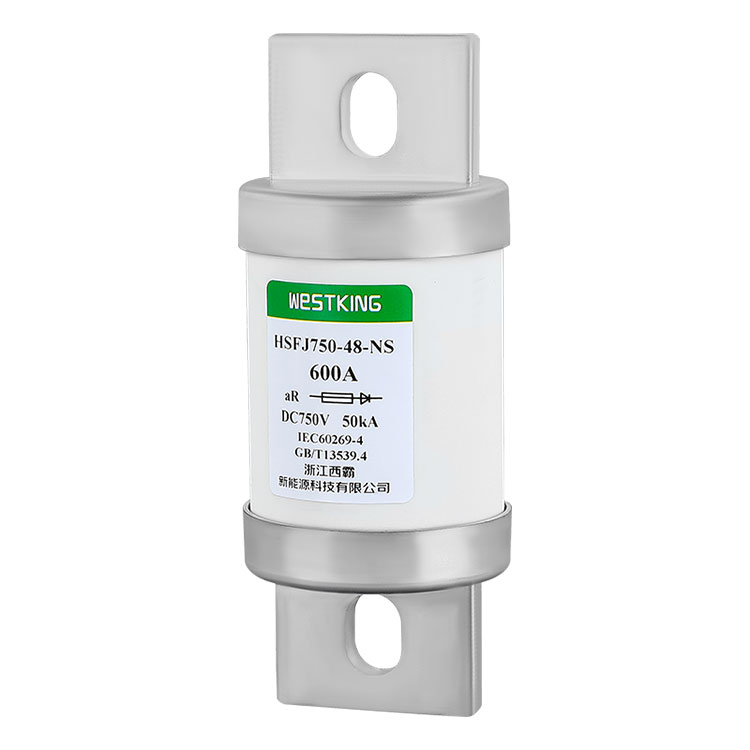

750VDC HIGH SPEED FUSE-HSFJ750-48-NS

Type	I2t(A2s)		Virtus damnum 1.0In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0In（w）	Adscendens telum / torque
HSFJ750-48-NS-300A	17000	72000	53.5	M10 install telum " Commendatur adscendens torques 20.0 N▪m
HSFJ750-48-NS-350A	21000	95000	61.0
HSFJ750-48-NS-400A	30000	115000	76.5
HSFJ750-48-NS-450A	37000	135000	91.0
HSFJ750-48-NS-500A	45000	178500	101.5
HSFJ750-48-NS-550A	56500	214000	112.5
HSFJ750-48-NS-600A	63000	265000	125.0
