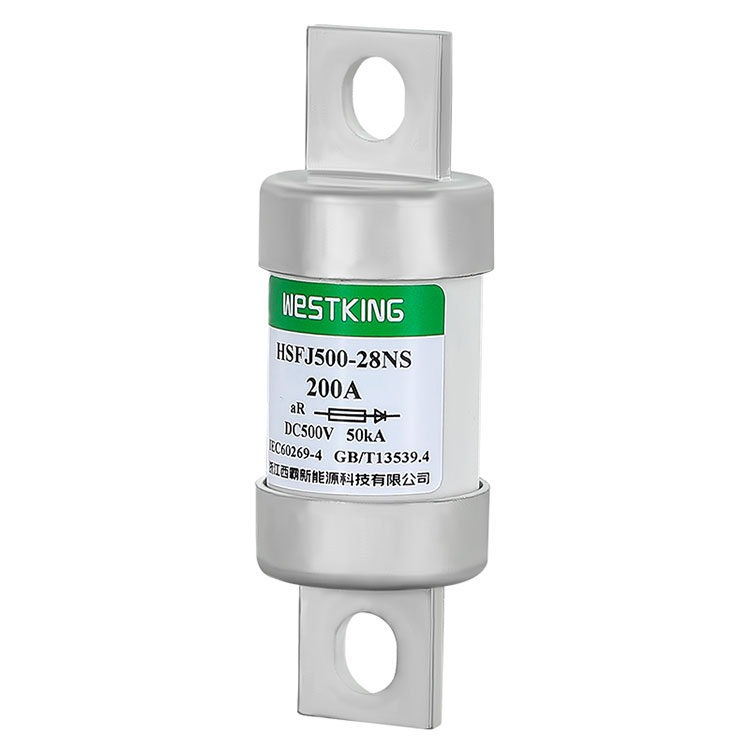

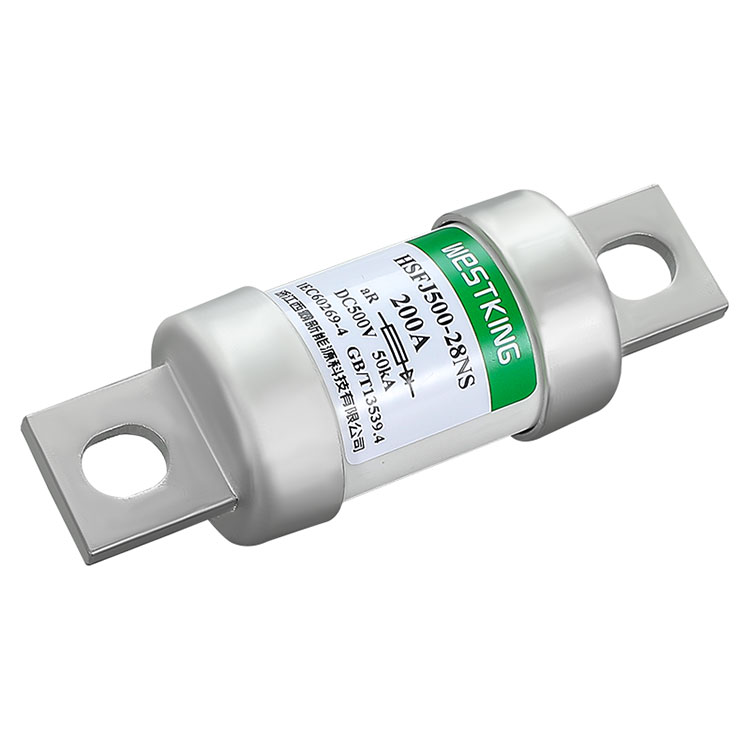

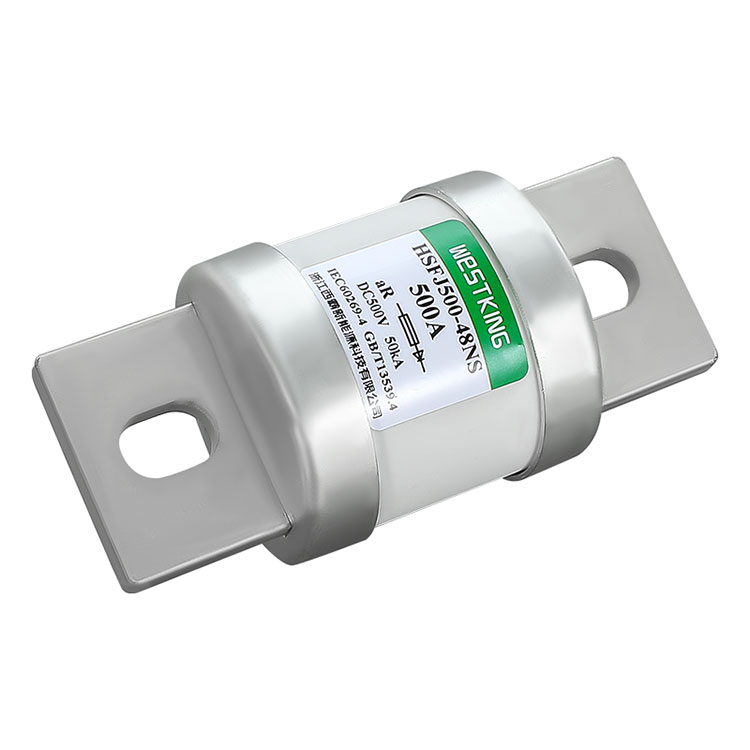

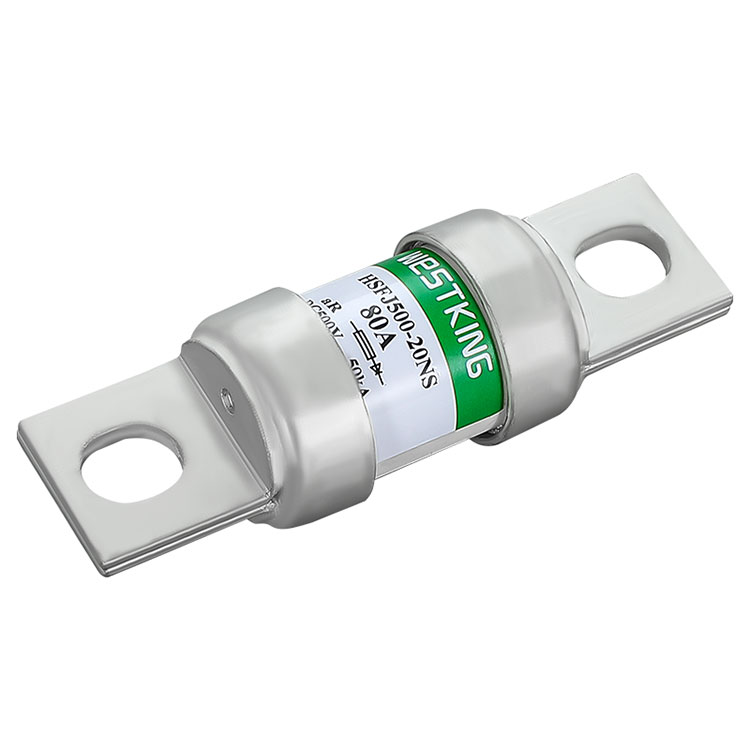

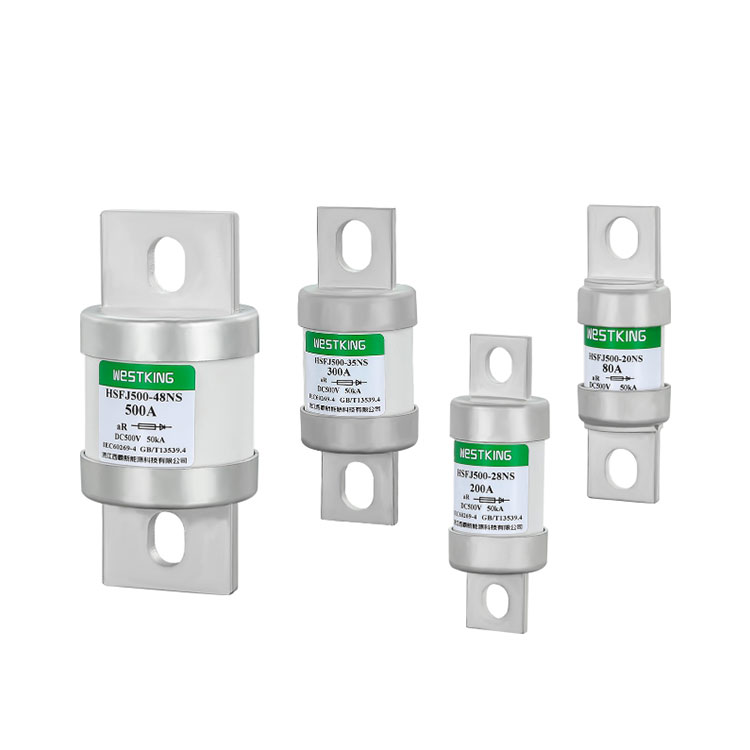

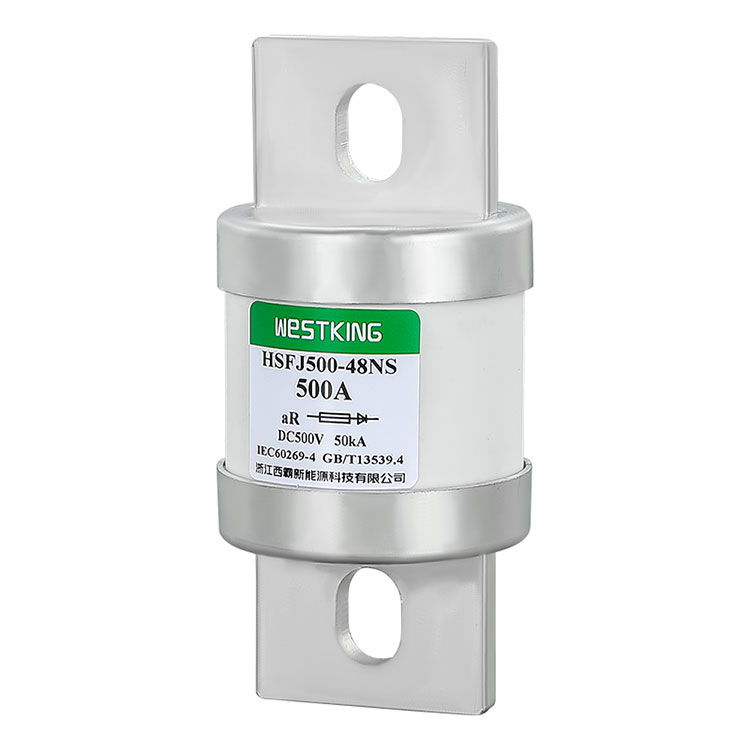

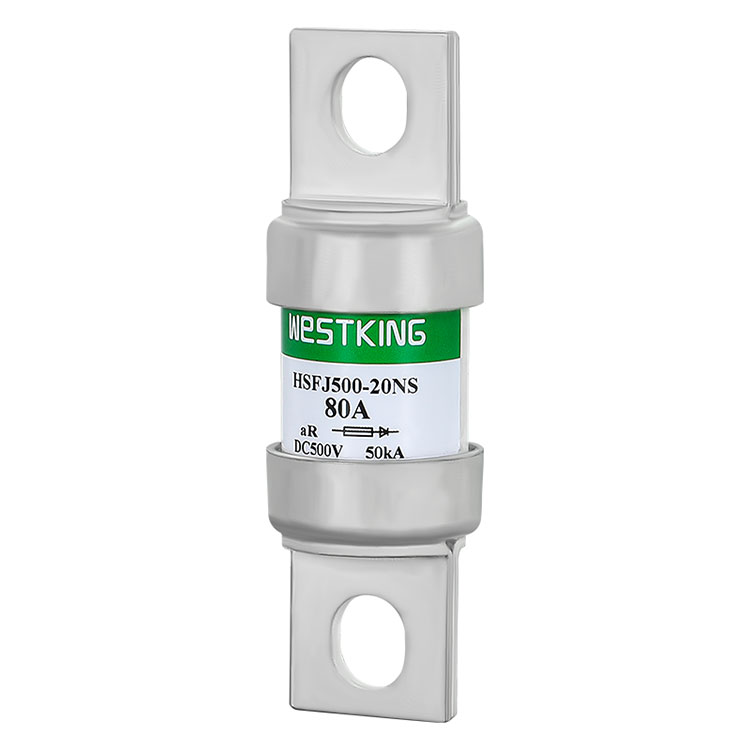

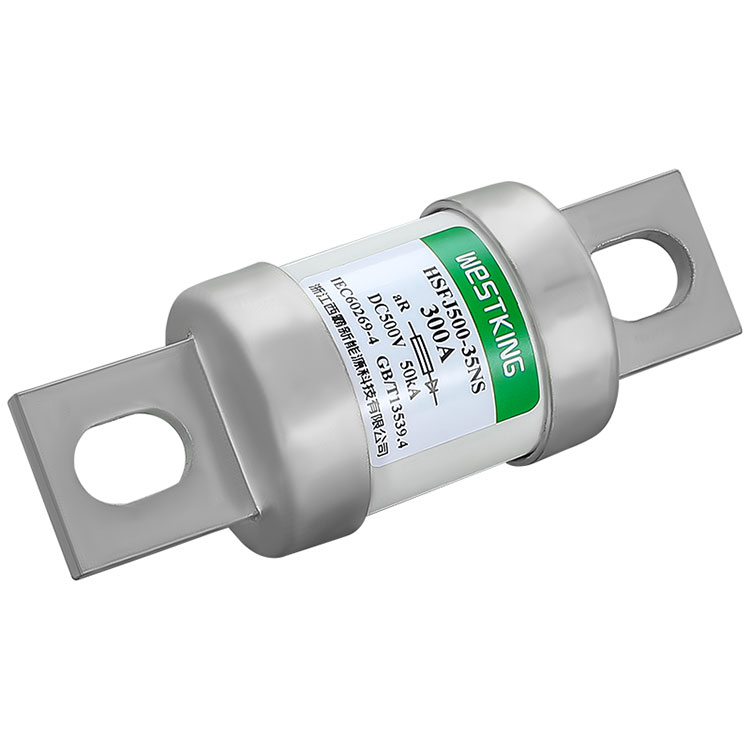

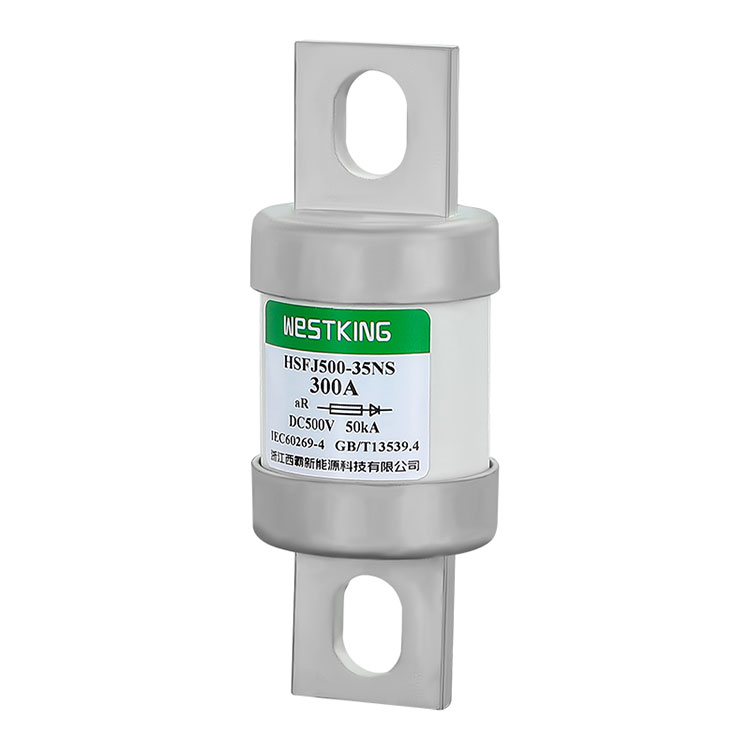

500VDC HSFJ500 EXILIM Fuse

Westking's HSFJ500 series DC fuses500VDC HSFJ500 EXILIM Fuseordinantur ad certas tutelas pro variis systematibus virtutis offerendas. Hi fusi sunt cylindrici fuses velocissimi agentes fulmine connexae quae sunt ideales machinis semiconductoribus ut inverters, rectificatores et converters, nec non altilium et machinis motoriis. applicationem in industriis inveniunt sicut in transitus blasphemiae et stationes incurrentes.

Mitte Inquisitionem

depictio producti

Westking's HSFJ500 series DC fuses500VDC HSFJ500 EXILIM FuseActio celeris responsio offer, humilis temperatura ortum et consummatio potentiae, bonum anti-vibrationis peractio, tutela brevis-circuitus certa, et institutionem facilem. Haec lineamenta praebere vim comprehensivam systematis tutelae ad optimalem observantiam et salutem.

500VDC HSFJ500 EXILIM FuseTechnical data

Type	Rated voltage	Ratum currents
HSFJ500-20-NS-(Amp)	500VDC/750VAC	50A, 60A, 70A, 80A, 100A, 125A, 150A
HSFJ500-28-NS-(Amp)	500VDC/750VAC	100A,125A,150A,175A,200A,250A
HSFJ500-35-NS-(Amp)	500VDC/750VAC	200A,250A,300A,350A,400A
HSFJ500-48-NS-(Amp)	500VDC/750VAC	300A, 350A, 400A, 450A, 500A, 550A, 600A

Utendo genus: aR

Rated fractionis facultatem: 50kA

Signa

IEC/EN 60269-4

RoHS Compliant

500VDC HSFJ500 EXILIM FuseKey features / COMMODUM

Ieiunium Power Cutoff: res celeres fusorum celerem exitum currentem, damna casuum obscurando praebent.

Reliability: Bolt-connected design boosts stabilitatem ac constantiam in ambitus asperis.

Securus instruitur: de consilio fuse signato-connexae ad simplicem institutionem et sustentationem.

Lata applicabilitas: Compatibile cum variis instrumentis potentiae, inclusis DC usibus communibus, DC potentiam convertentium/rectificatios coegi, imprimis intentionem redactam aestimatam, et tractionem inverters alta intentione.

Salus: Tutela arma et personas in delictis.

Environmental Conscientia: Environment-amica materies in fabricandis.

Energy Efficiency: Excelsa celeritas intervalli potentia confert ad conservationem energiae.

500VDC HSFJ500 EXILIM FuseAPPLICATIONS

HSFJ500 series Westkingi styli Americani Septentrionalium fusiarum summa celeritate connexarum principaliter designatae sunt ad tutelam DC communium negotiorum, DC potentiam convertentium/rectiferiorum coegi, immissorum voltage-aestimandorum, et inverters summus intentionis tractus.

Hae fuses partes vitalis in systematis electricis agunt, cum potentiam copiam rerum onerare vel brevibus circuitibus in casibus decurrentibus celeriter abscindere possunt.

500VDC HSFJ500 EXILIM FuseTestimonia

• is09001 iatf16949

Origin

China

500VDC HIGH SPEED FUSE-HSFJ500-20-NS

Type	I2t(A2s)		Virtus damnum 1.0 In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0 In（w）	Adscendens telum / torque
HSFJ500-20-LS-50A	120	360	8.0	Install telum M8 Commendatur adscendens torques 12.0 N▪m
HSFJ500-20-LS-60A	220	600	10.0
HSFJ500-20-LS-70A	340	950	14.0
HSFJ500-20-LS-80A	450	1500	17.0
HSFJ500-20-LS-100A	760	2800	20.5
HSFJ500-20-LS-125A	1140	4600	25.0
HSFJ500-20-LS-150A	2050	6460	30.0

500VDC HIGH SPEED FUSE-HSFJ500-28-NS

Type	I2t(A2s)		Virtus damnum 1.0 In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0 In（w）	Adscendens telum / torque
HSFJ500-28-NS-100A	450	2100	17.0	Install telum M8 Commendatur adscendens torques 12.0 N▪m
HSFJ500-28-NS-125A	750	3300	23.5
HSFJ500-28-NS-150A	1000	4500	28.0
HSFJ500-28-NS-175A	1300	6000	33.0
HSFJ500-28-NS-200A	2250	11100	38.5
HSFJ500-28-NS-250A	4900	21500	46.0

500VDC HIGH SPEED FUSE-HSFJ500-35-NS

Type	I2t(A2s)		Virtus damnum 1.0In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0In（w）	Adscendens telum / torque
HSFJ500-35-NS-200A	2250	11100	37.0	M10 install telum " Commendatur adscendens torques 20.0 N▪m
HSFJ500-35-NS-250A	6100	30000	40.0
HSFJ500-35-NS-300A	8600	48000	48.0
HSFJ500-35-NS-350A	12500	70500	57.5
HSFJ500-35-NS-400A	18000	91000	64.0

500VDC HIGH SPEED FUSE-HSFJ500-48-NS

Type	I2t(A2s)		Virtus damnum 1.0In（w）	Adscendens telum / torque
Type	Exustio	defensionem	Virtus damnum 1.0In（w）	Adscendens telum / torque
HSFJ500-48-NS-300A	10600	45000	47.0	M10 install telum " Commendatur adscendens torques 20.0 N▪m
HSFJ500-48-NS-350A	14000	67000	55.0
HSFJ500-48-NS-400A	18500	96000	63.5
HSFJ500-48-NS-450A	22500	116000	72.0
HSFJ500-48-NS-500A	28000	140000	81.5
HSFJ500-48-NS-550A	32500	176000	92.5
HSFJ500-48-NS-600A	37500	195000	105.0

Applicationem Guide:

Ambiens Temperature:

Normalis condiciones operandi: Maximum temperamentum ambiens 40°C non excedens; mediocris temperatura horarum 24-35°C non excedentes, et valor mediocris intra annum mensuratus humilior est; minimum temperatus ambiens non infra -5°C.

Condiciones operativae licitae: -40°C ad 85°C.

Altitude:

Normalis condiciones operandi: Altitudo instruitur 2000m non excedens.

Condiciones operativae licitae: 2000m ad 4500m.

Conditiones atmosphaerae:

Normalis condiciones operandi: aer mundus, humiditas relativa non excedit L% in 40°C; superior humiditas conceditur in inferioribus temperaturis; his conditionibus, moderata condensatio interdum fieri potest propter mutationes temperaturas.

Condiciones operativae licitae: Relativa humiditas 95% sine condensatione manifesta non excedit.

Tempestas instruitur:

FUSCA WESTKING in re ipsa vel perpendiculariter institui debet. Cum inaugurari, curare ut electrica alvi deiectio non minus quam 8mm et subreptionis distantiae non minus quam 10mm. Condiciones institutionis sunt hae:

a) In locis nullis significantibus tremorem et ictum tremorem;

b) In instrumentis sine explosione discriminum, nullos vapores vel pulverem continentes, qui metalla exedunt et insulationem destruunt;

c) In locis sine pluvia, nivis, vel glaciei irruptione.

Packaging et repono:

Packaging: Corrugated charta archa interior, lobortis exterior, cum pluvia, umore, et notis fragilis salus.

Repono: Temperature -40°C ad 40°C; humiditas relativa non excedens 70% ad 40°C, 80% ad 30°C, et 90% ad 20°C infra; IMPERVIUS, vitare contactum liquidae aquae et deformationis ob humoris effusionem; fireproof.

Usus et sustentatio:

FUSA WESTKING ab curatoribus dedicatis regulariter purgari et conservari debet, statum clavorum inspicere et operationem salvam curare. Cum fuse elementum tabescit, fuso eiusdem specificationis repone, et operam ut pulverem et alios contaminantes e basi removeas.
