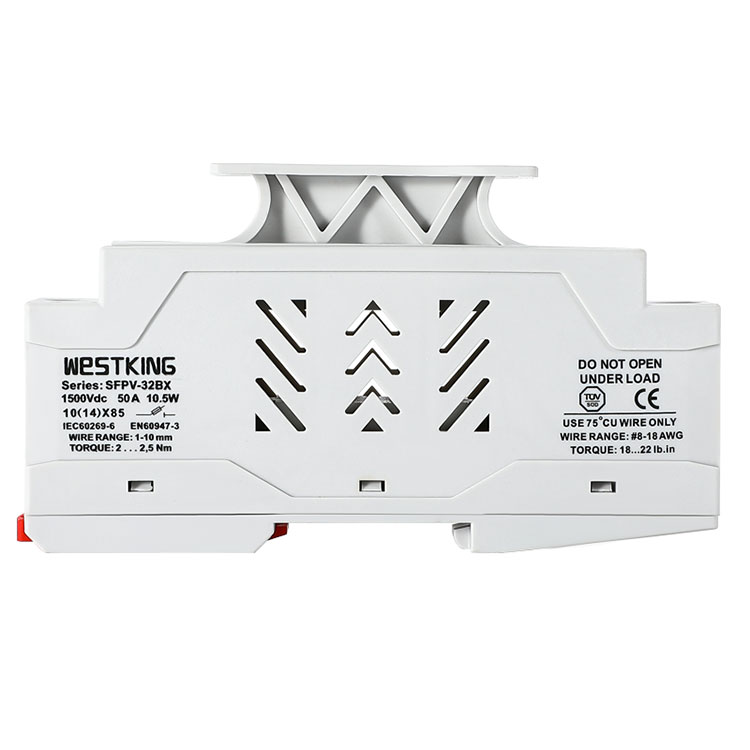

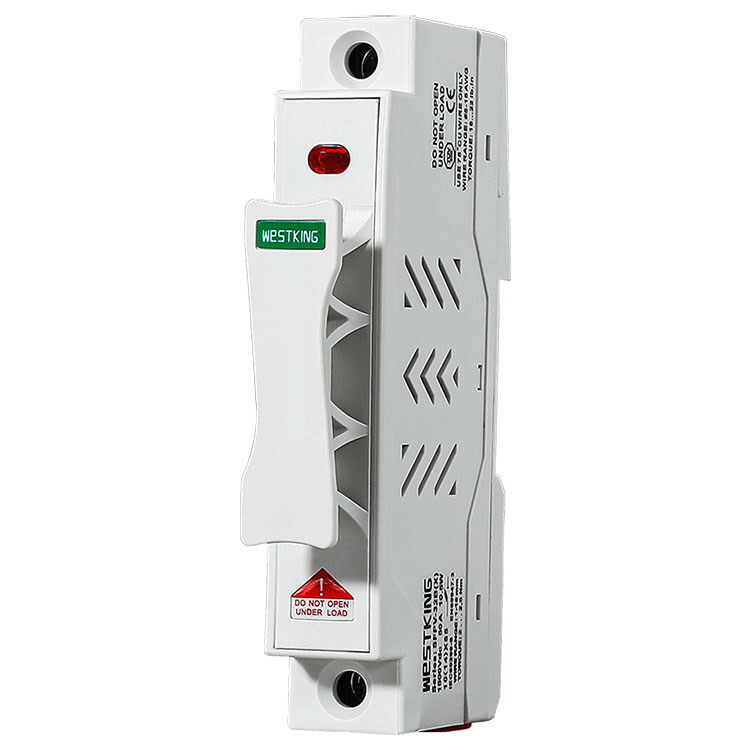

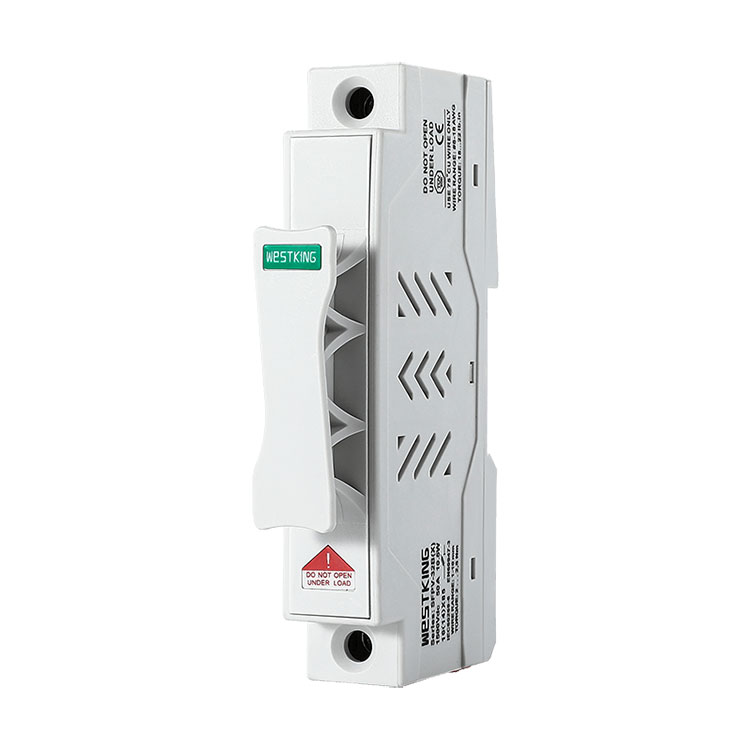

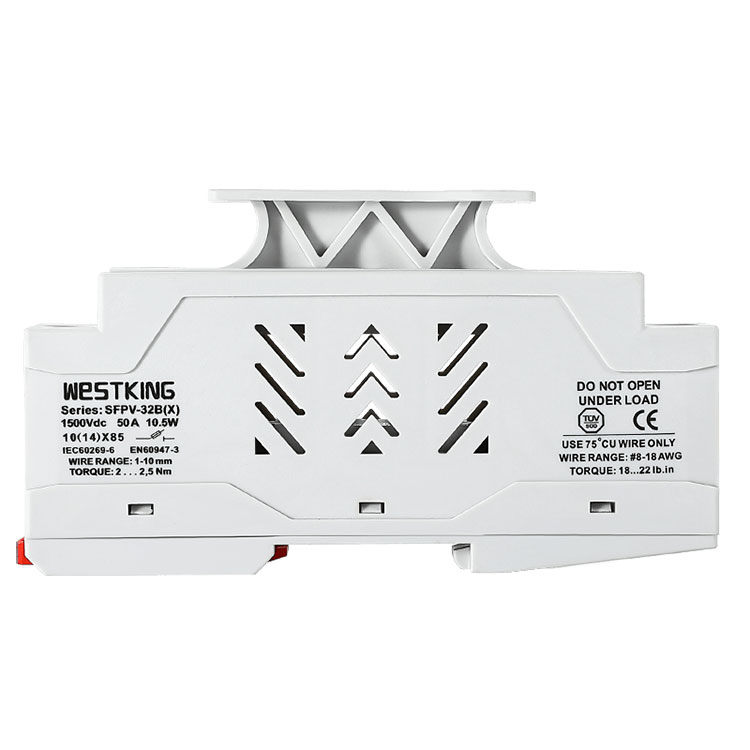

10/14x85 1500VDC PV Fuse Holder
SFPV-32BX photovoltaic fusebasi compatitur cum utroque 1500VDC 10X85MM et 10/14×85MM fusis photovoltaicis, cum maximi aestimari currenti usque ad 50A. Explicatio huius PV fuse possessoris in profundissima communicatione nititur et probatio verificationis cum frequentibus usoribus e basi photovoltaicis per WESTKING. The SFPV-32B 1500VDC fuse detentor notae in processu caloris dissipationis structurae, cum canalibus pro aere calido inter polos fluunt, efficaciter. minuendo temperatura superpositione fuse generata a. Spatium internum designatum est ut fuse sponte penderet, quominus testam plasticam possessoris attingeret et periculum incendii et carbonising plasticae minueret.
Mitte Inquisitionem
depictio producti
Ut facilius fuses repositoquepossessor designatus est cum manubrio perscriptore, quod facile evelli potest, cum processus fuse subrogatus commodior et tutior est. In summa, SFPV-32BX fusae photovoltaicae basis demonstrat praestantem effectum et constantiam in augendae virtutis statione operandi efficientiam et salutem praestandi. Electio credita est officinarum photovoltaicarum.
Technical data
| • Rated intentione: | 1500Vdc |
| • Rated excursus: | 50A |
| Gradus • praesidium: | IP20 |
| • Product Size: | 10/14x85mm gPV fuses link |
| • fractionis Rated facultatem: | 50 kA |
| • at caliditas: | -40°C ... 90°C |
| • operating temperatus: | -40°C ... 85°C |
| •Potestas dissipationis fuse possessor: | 0.37W |
| • Rated velit voltage: | 6kV |
Signa
IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse detentores
UL4248-19 Photovoltaic fuse detentores
UL486E Wiring terminales
CSA C22.2 Nº 4248-1 Fuse possessor ecclesiarum
CSA 22.2 Nº 65 Wire connectors
Key features / COMMODUM
Consilium paciscendo servat spatium
TH35 DIN rail institutionem ad facilem integrationem
Drawer-style plug-and-play design, safe and opportu for fuse replacement
Libitum visualium fuse indicator
Factum ex PBT materia plastica
Retardans materia flammea, V0 rating
APPLICATIONS
Applicationes photovoltaicae usque ad 1500VDC
Praesidium apud PV filum / ordinata gradu
Applicationes invertere
Component arca operandi
Testimonia
is09001 iatf16949
TUV CE
Origin
China
CARACTERES
| type | ducitur indicator | Net ponderare | stipare |
| SFPV-32B-1P | NO | 117g | 6pcs/arca |
| SFPV-32BX-1P | sic | 120g | 6pcs/arca |
Dimensiones (mm)
Compatible FUSE link
Exemplar ac significationem
WESTKING Photovoltaic Fuse and possessor
Applicationem Diagram
